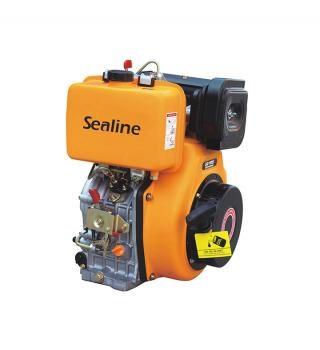

| Diesel Engine | |||||||||||
| Engine | Model | SE170F(E) | SE178F(E) | SE186FA(E) | SE188FA(E) | SE192FB(E) | |||||
| Engine Type | single cylinder/vertical/4-stroke/air cooled/direct injection | ||||||||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Rated Output Power(KVA) | 2.5 | 2.8 | 3.7 | 4 | 5.9 | 6.5 | 7 | 7.5 | 8 | 8.5 | |
| Max Output Power(KVA) | 2.8 | 3.1 | 4.1 | 4.4 | 6.5 | 7.1 | 7.5 | 8 | 8.5 | 9 | |
| Bore × Stroke(mm) | 70×55 | 78×62 | 86×72 | 88×72 | 92×72 | ||||||
| Compression Ratio | 20:01 | 20:01 | 19:01 | 19:01 | 19:01 | ||||||
| Fuel Consumption(g/kw.h) | ＜284 | ＜297 | ＜280 | ＜293 | ＜273 | ＜286 | ＜273 | ＜286 | ＜273 | ＜286 | |
| Starting System | Recoil starter/E-starter | ||||||||||
| Rotation Direction | Clockwise | ||||||||||
| Lubrication System | Pressure Splashed | ||||||||||
| Displacement | 212 | 296 | 418 | 438 | 498 | ||||||
| Fuel Type | (summer)0#, (winter)10# Diesel Oil | ||||||||||
| Fuel Tank Capacity(L) | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | ||||||
| Oil Capacity(L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | ||||||
| Dimension | Net Weight (Kg) | 26 | 33 | 44 | 45 | 58 | |||||
| Dimension (L*W*H)(mm) | 332×348×416 | 383×412×450 | 417×470×494 | 417×470×494 | 510×470×560 | ||||||
| Packing | In Strong Corrugated Board Carton | ||||||||||
| 20FT Loading Quantity | 480 | 350 | 240 | 240 | 220 | ||||||
| 40HQ Loading Quantity | 960 | 700 | 480 | 480 | 440 | ||||||
| Payment | Payment Terms | T/T or L/C | |||||||||
| Minimum Order Quantity | 5 PCS | ||||||||||
| Delivery Lead Time | Within 15days after received the depsoite | ||||||||||
| Warranty | One Year or 500 Working Hours | ||||||||||
